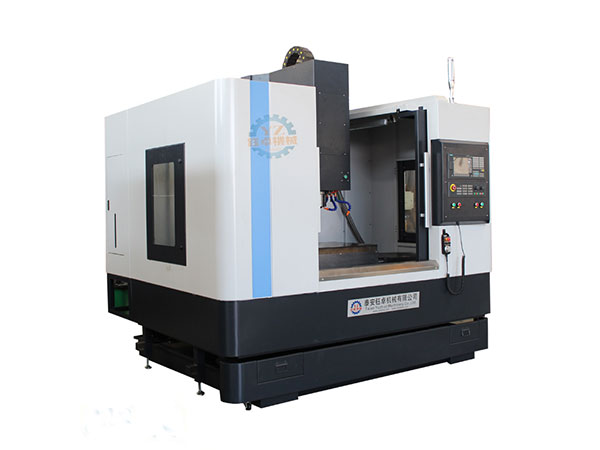

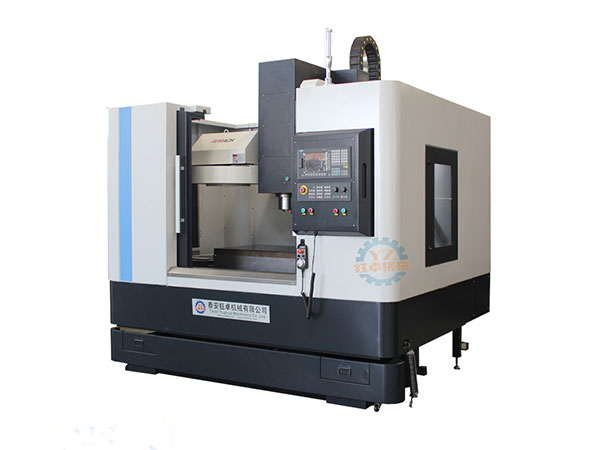

ITEM | UNIT | VMC1060 | ||
Table | Size | MM | 1200 X600 | |
Max load | KGS | 800 | ||
T-Slot size | MM | 18 X 5 | ||
Working area | X-axis | MM | 1100 | |
Y-axis | MM | 600 | ||
Z-axis | MM | 600 | ||
Spindle nose to table | MM | 100-750 | ||
Spindle center to z axis guide surface | 655 | |||
spindle | Spindle taper | BT40-150 | ||
Spindle speed | RPM | 8000 | ||
spindle motor power | KW | 11 | ||
Feed | Fast feed | X | M/MIN | 24 |
Y | M/MIN | 24 | ||
Z | M/MIN | 20 | ||
cutting speed | MM/MIN | 1-1000 | ||
feed motor power | X | N | 18 | |
Y | N | 18 | ||
Z | N | 18 | ||
Capacity | Types tool changers | Funnel type tool changer/Arm type tool changer ATC | ||
Capacity of tools | 20/24 | |||
Tool change time | S | 8/2.5 | ||
Accuracy | Position Accuracy | MM | ±0.006 | |
Repeatability | MM | 0.008 | ||
Size | machine size | MM | 2650x2250x2500 | |
weight | Kgs | 6000 | ||
