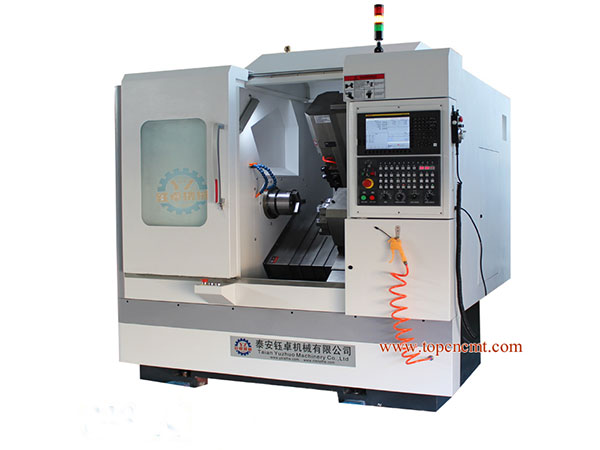

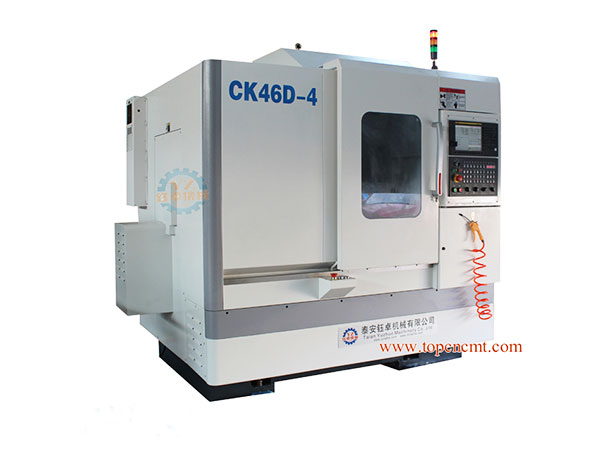

Specification | CK46D-4/8 | ||
Max.Swing Over Bed | 450mm | ||
Max.Swing Over Carriage | 130mm | ||
Max.Turning Length | 450mm | ||
Carriage Length | 780mm | ||
Lathe Bed structure | 30℃ integral inclined lathe | ||
Distance between carriage of spindle | 80mm | ||
Spindle Nose | A2-5 | ||
Spindle speed range | 50-4500r/min | ||
Hole through spindle | 56mm | ||
Main motor(c axis) spindle motor | 7.5kw | ||
Milling Head(y axis) | Side 4 end 4/Side 2 end 2 | ||
Milling head power | 2.3kw | ||
Milling head speed | 3000r/min | ||
Distance of each Milling head | 60mm | ||
Travel | X Axis | 500mm | |
Z Axis | 450mm | ||
Y Axis | 240mm | ||
Turret | Gang tools | ||
Rapid speed | X Axis | 24000mm/min | |
Z Axis | 24000mm/min | ||
Y Axis | 15000mm/min | ||
X/Y/Z Positioning accuracy | 0.006mm | ||
X/Y/Z Repositioning accuracy | 0.003mm | ||
Spindle(c axis) dividing positioning accuracy | 0.02 | ||
Spindle(c axis) dividing positioning accuracy | 0.006 | ||
Weight | 3000kgs | ||
Overall dimensions | 2500×1800×1800mm | ||
