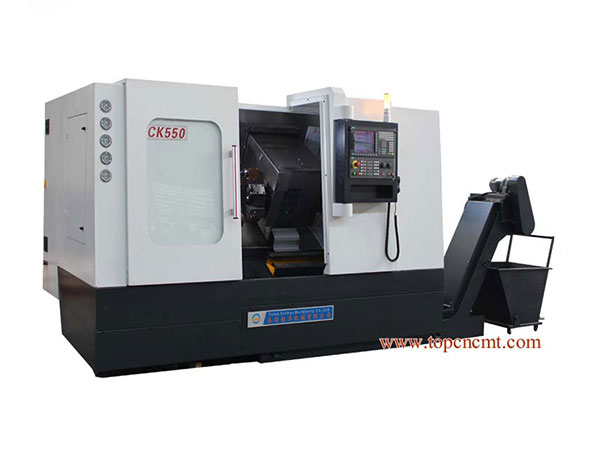

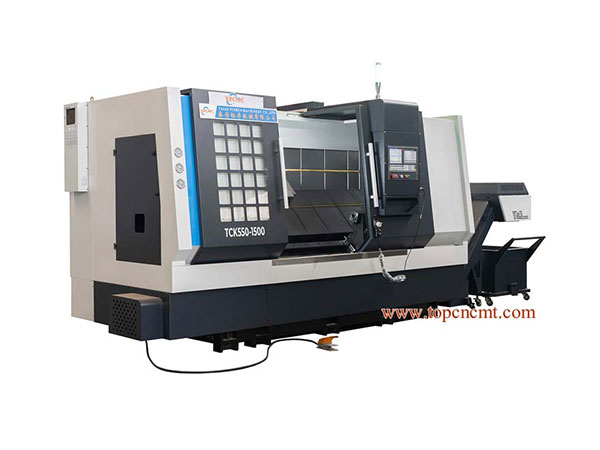

Item | Unit | TCK42(30 degree) Y AXIS TCK42 (45degree) without Y AXIS | TCK550 (30degree) Y AXIS TCK550 (45 Degree) without Y | TCK550 (30degree) Y AXIS TCK550 (45 Degree) without Y | ||
Work Range | Max. swing dia. over bed | mm | 420 | 560 | 750 | |
Max. swing dia. over slide | Mm | 195 | 360 | 400 | ||
Max. cutting dia. Of disc parts | mm | 420 | 550 | 680 | ||
Max. cutting dia. Of axle parts | mm | 195 | 360 | 400 | ||
Distance between centers | mm | 500/1000/1500 | 500/1000/1500 | 750/1000/1500 | ||
X/Z/Y X/Z Axis | X axis travel | mm | 240 | 320 | 400 | |
Z axis travel | mm | 550/1050/1550 | 550/1050/1550 | 750/1000/1500 | ||
Y axis travel | mm | ±35 | ±45 | ±50 | ||
X Z Fast feed | mm | 12000 | 12000 | 20000 | ||
Spindle | Spindle bore | mm | 56 | 66(A2-6)/86(A2-8) | 66(A2-6)/86(A2-8) | |
Max through bar diameter | mm | 40 | 50(A2-6)/75(A2-8) | 50(A2-6)/75(A2-8) | ||
spindle nose type | A2-5/A2-6 | A2-6/A2-8 | A2-6/A2-8 | |||
spindle speed | rpm | 4000 | 4000 | 4000 | ||
Main motor power (C AXIS) | kw | 5.5KW Servo | 7.5KW Servo | 7.5KW Servo | ||
accuracy | X Z axis positioning accuracy | mm | 0.012 | 0.012 | 0.012 | |
X Z repeatability | mm | 0.003 | 0.003 | 0.003 | ||
Diameter uniformity | mm | 0.03/300 | 0.03/300 | 0.03/300 | ||
Flatness | mm | 0.03/300 | 0.03/300 | 0.03/300 | ||
Number Turret | 12 servo power turret | 12servo power turret | 12servo power turret | |||
power turret | turret type | BMT40 Y AXIS | BT45/BT55 Y AXIS | BMT45/BMT55 Y AXIS | ||
Outer circle Shank diameter | 20X20 | 20X20/25X25 | 20X20/25X25 | |||
Inner shank diameter | 25 | 32 | 32 | |||
Driven tool | End face driven tool | ER20/3000RPM | ER25/3000RPM | ER25/3000RPM | ||
Side face driven tool | ER20/3000RPM | ER25/3000RPM | ER25/3000RPM | |||
Chuck | mm | Hydraulic Chuck(8inch) | Hydraulic Chuck 10 inch | Hydraulic Chuck 10 inch | ||
Machine size | mm | 2500/3000/3500x1800X1800 | 2700/3200/3700X2100X1900 | 2850×1900×1960 | ||
3.2T/3.7/4.2 | 3.8/4.3/4.8 | 4.2 | ||||
