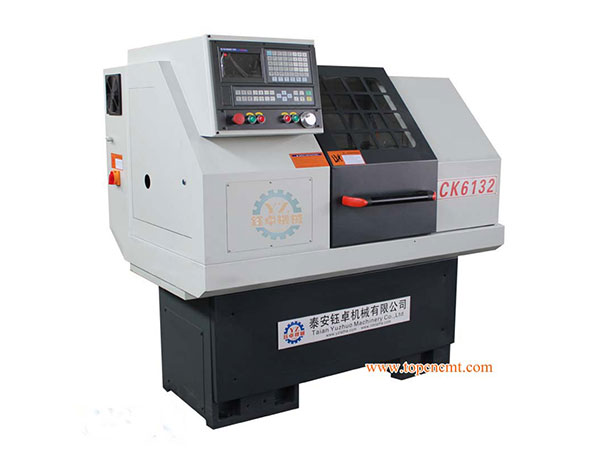

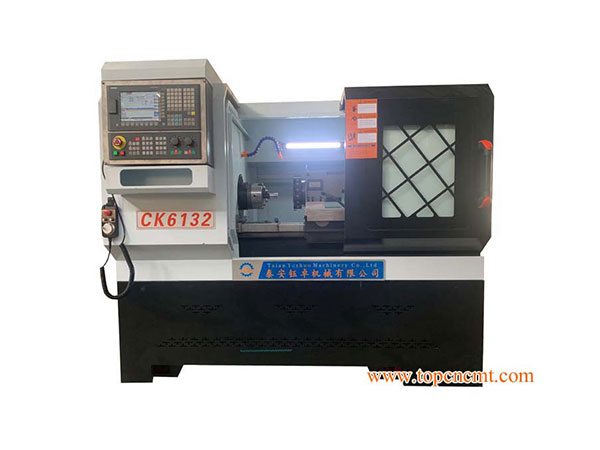

Item | CK6132 | ||
Machining Range | Max. Swing over bed | MM | 350 |
Max. Swing over cross slide | MM | 180 | |
Max. work length | Mm | 400 | |
Max. Z axis Travel | MM | 450 | |
Max. X axis Travel | MM | 280 | |
Spindle | Spindle bore | MM | 48 |
Spindle nose | A2-5 | ||
Spindle speed range | RPM | 100-2500 | |
Spindle type | Independent spindle | ||
Chuck | MM | 200mm manual 3 jaws | |
Lathe bed | Bed width | MM | 260 |
Feed | x/z fast feed | 6000/8000Mm/min | |
x/z cutting travel speed | 1-6000Mm/min | ||
Tool Turret | Number of tool turret | 4 station electric tool turret | |
Tool shank type | MM | 16x16/20x20 | |
Working accuracy | Positioning accuracy | MM | X≤0.010 Z ≤0.015 |
Repeatability Positioning accuracy | MM | X≤0.0075 Z ≤0.010 | |
Min. unit set | MM | 0.001 | |
roundness | MM | ≤0.007 | |
Diameter uniformity | MM | ≤0.03 (length 300) | |
Flatness | MM | ≤0.02 (Diameter 300) | |
Tailstock | Dia. of tailstock sleeve | MM | 60 |
Tailstock sleeve taper | MT4 | ||
Max. Tailstock sleeve travel | MM | 100 | |
Motor | Spindle drive motor power | KW | 4 |
Coolant pump power | W | 90 | |
Size | L W H | MM | 2050X1500X1650 |
Weight | kg | 1200kg | |
