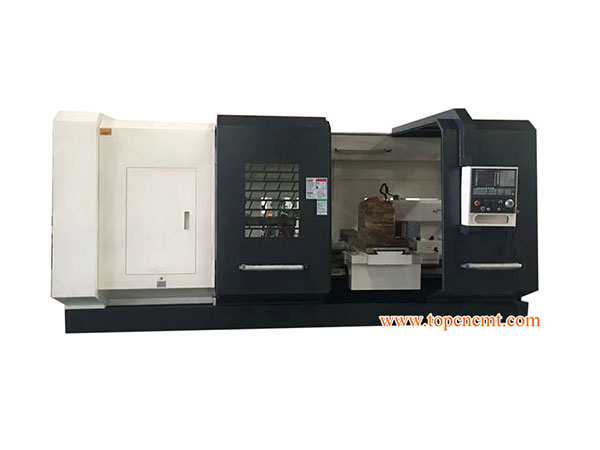

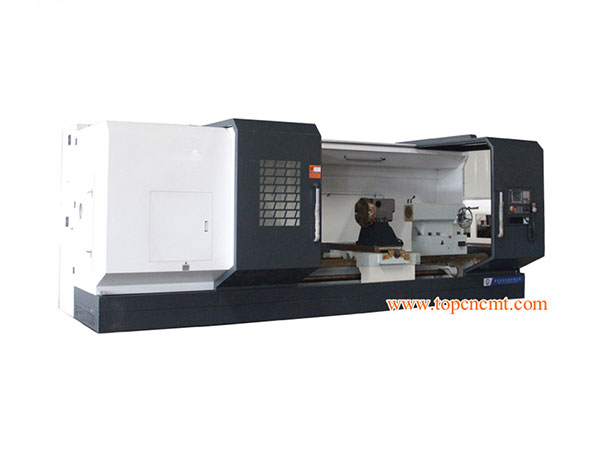

Item | Unit | CK61100 |
Max dia. swing over bed | mm | 1000 |
Max dia. swing over cross slide | mm | 680 |
Max length of workpiece | mm | 1500 |
Width of bed | mm | 650 |
Spindle bore | mm | 104 |
Spindle nose | C11 | |
Spindle taper hole | 1:20/ 120 | |
Power of spindle motor | Kw | 15 |
Mode of spindle speed | Three gears Smooth adjustment | |
Range of spindle speed | r/min | (L): 40-120 (M): 110-350 (H): 290-950 |
X/Z axis rapid traverse | mm/min | 4000/ 8000 |
Min feeding set unit of X/Z axis | mm | 0.001 |
X axis motor speed | r/min | 1500 |
X axis motor torque | N.m | 15 |
X axis motor power | Kw | 2.3 |
Z axis motor speed | r/min | 1500 |
Z axis motor torque | N.m | 18 |
Z axis motor power | Kw | 4.7 |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Tailstock quill taper | MT6 | |
Turret model | HAK-21240 | |
Tool post type | Vertical 4- station | |
Turret dimension | mm | 240x240 |
Turret indexing time | s | 4.1 |
Chuck | K11-320 Three jaw chuck | |
Positioning accuracy | mm | 0.02 |
Repositioning accuracy | mm | 0.01 |
Machine size | mm | 5000x2050x1860 |
Machine weight | Kg | 7500 |
