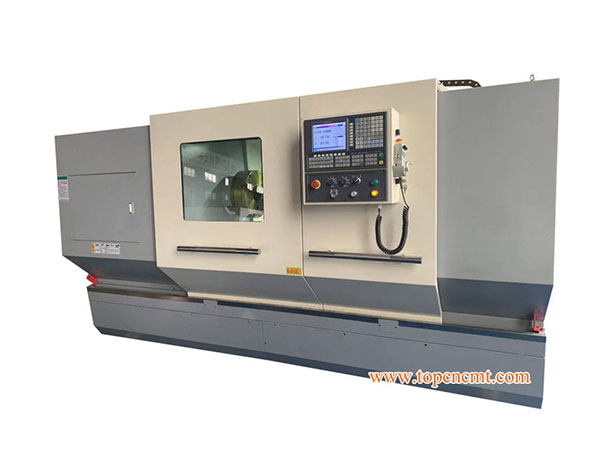

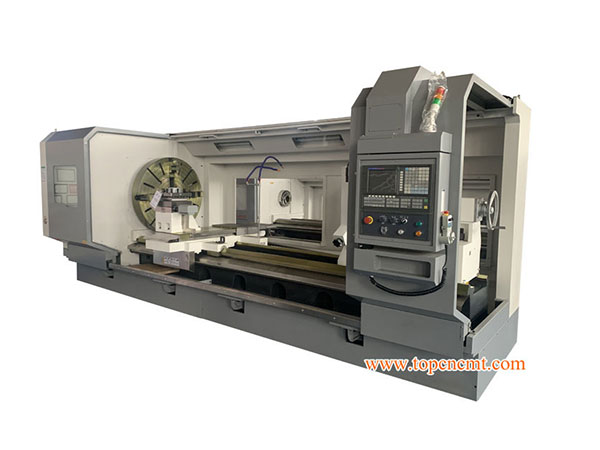

CK61140 Heavy Duty CNC Lathe

3 张,当前第 1上一张 | 下一张 幻灯播放
CK61140 Heavy Duty CNC Lathe
1 / 3

Item

Unit

CK61140

Max dia. swing over bed

mm

1450

Max dia. swing over cross slide

mm

1000

Max length of workpiece

mm

1500

Width of bed

mm

755

Spindle bore

mm

130

Spindle nose


A2-15

Spindle taper hole


1:20/ 140

Power of spindle motor

Kw

22

Range of spindle speed

r/min

17-250

X/Z axis rapid traverse

mm/min

3000/6000

X axis motor speed

r/min

1500

X axis motor torque

N.m

18

X axis motor power

Kw

2.8

Z axis motor speed

r/min

1500

Z axis motor torque

N.m

30

Z axis motor power

Kw

3.8

Tailstock quill diameter

mm

160

Tailstock quill travel

mm

300

Tailstock quill taper


MT6

Turret model


SLD170A

Tool post type


Vertical 4- station

Turret dimension

mm

300X300

Turret indexing time

s

2.6

Chuck


K72-1000 Four jaw chuck

Positioning accuracy

mm

0.02

Repositioning accuracy

mm

0.01

Machine size

mm

4500x2300x2300

Machine weight

Kg

11000
