The machine through the numerical control system could automatically process the inside and outside cylinder surface, cone surface, circular, arc surface, end face etc. Also can process the single and multiple threads in metric, inch and other standards.

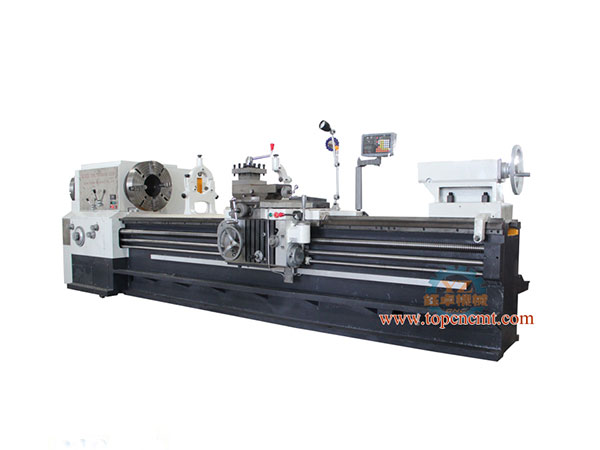

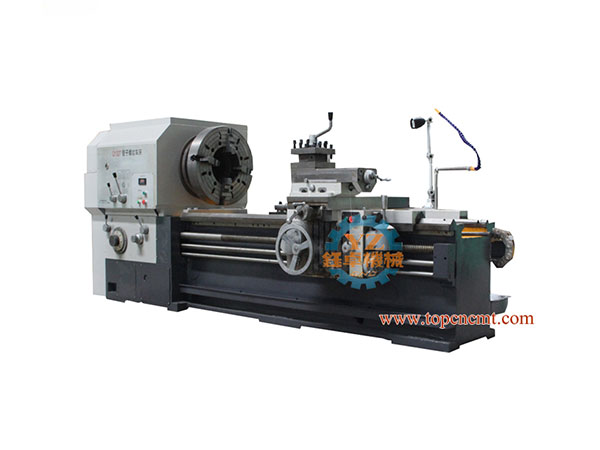

Pipe Threading Lathe Machine
Item | Unit | Q1325 | Q1327 | Q1330 |
Max dia. swing over bed | mm | 800 | 800 | 800 |
Max dia. swing over cross slide | mm | 540 | 480 | 480 |
Max length of workpiece | mm | 1500 | 1500 | 1500 |
Width of bed | mm | 550 | 600 / 755 | 600 / 755 |
Spindle bore | mm | 255 | 280 | 305 |
Power of spindle motor | Kw | 11 | 15 | 15 |
Spindle speed | r/min | VF2 steps 20-340 | VF2 steps 20-300 | VF2 steps 20-300 |
Z axis feed grade / range | mm/r | 26/ 0.07-1.33 | 32/ 0.095-14 | 32/ 0.095-14 |
X axis feed grade / range | mm/r | 22/ 0.02-0.45 | 32/ 0.095-14 | 32/ 0.095-14 |
Carriage rapid traverse speed | mm/min | 4000 | 3740 | 3740 |
Cross slide rapid traverse speed | mm/min | 1300 | 1870 | 1870 |
Metric thread grade / range | mm | 24 / 1-14 | 22 / 1-15 | 22 / 1-15 |
Inch thread grade / range | T.P.I | 40 / 2-28 | 26 / 14-1 | 26 / 14-1 |
Traverse of cross slide | mm | 430 | 420 | 420 |
Max. Traverse of turret | mm | 200 | 200 | 200 |
Tailstock quill travel | mm | 200 | 250 | 250 |
Tailstock quill diameter / taper | mm | 100 / MT5 | 100 / MT6 | 100 / MT6 |
Chuck | 4-jaw manual φ630 | 4-jaw manual φ630 | 4-jaw manual φ630 | |
Machine size | mm | 3700x1600x1400 | 3750x1700x1600 | 3750x1700x1600 |
Machine weight | Kg | 6000 | 6500 | 7000 |
