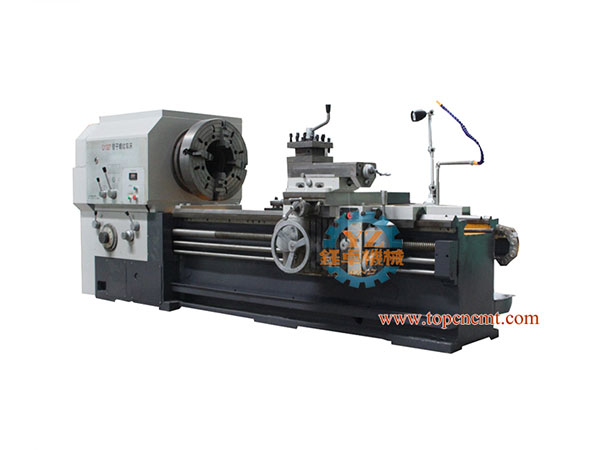

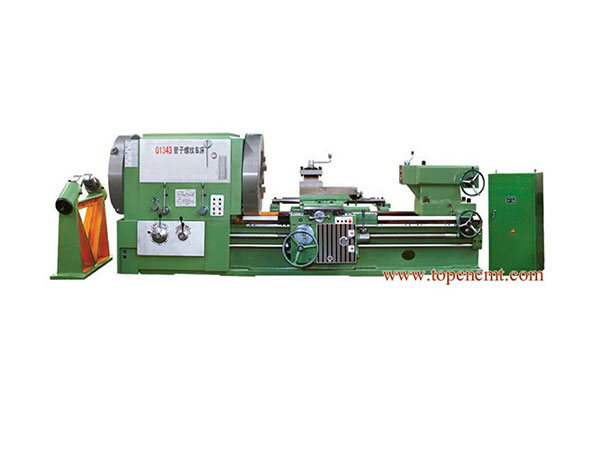

Item | Unit | Q1335 | Q1343 | Q1353 |
Max dia. swing over bed | mm | 1000 | 1000 | 1250 |
Max dia. swing over cross slide | mm | 610 | 610 | 860 |
Max length of workpiece | mm | 1500 | 1500 | 1500 |
Width of bed | mm | 755 | 755 | 755 |
Spindle bore | mm | 360 | 440 | 540 |
Power of spindle motor | Kw | 22 | 22 | 22 |
Spindle speed | r/min | VF2 steps 30-260 | VF2 steps 23-260 | VF2 steps 23-260 |
Z axis feed grade / range | mm/r | 30/ 0.1-1.5 | 30/ 0.1-1.5 | 30/ 0.1-1.5 |
X axis feed grade / range | mm/r | 32/ 0.05-0.75 | 32/ 0.05-0.75 | 32/ 0.05-0.75 |
Carriage rapid traverse speed | mm/min | 3740 | 3740 | 3740 |
Cross slide rapid traverse speed | mm/min | 1870 | 1870 | 1870 |
Metric thread grade / range | mm | 23 / 1-15 | 23 / 1-15 | 23 / 1-15 |
Inch thread grade / range | T.P.I | 22 / 28-2 | 22 / 28-2 | 22 / 28-2 |
Traverse of cross slide | mm | 520 | 520 | 520 |
Max. Traverse of turret | mm | 300 | 300 | 300 |
Tailstock quill travel | mm | 300 | 300 | 300 |
Tailstock quill diameter / taper | mm | 140 / MT6 | 140 / MT6 | 140 / MT6 |
Chuck | 4-jaw electric φ780 | 4-jaw electric φ1000 | 4-jaw electric φ1000 | |
Machine size | mm | 5000x2100x1680 | 5000x2100x1680 | 5000x2100x1700 |
Machine weight | Kg | 12800 | 13000 | 15000 |
